Laboratory CBR Testing in Luton: Reliable Strength for Every Layer

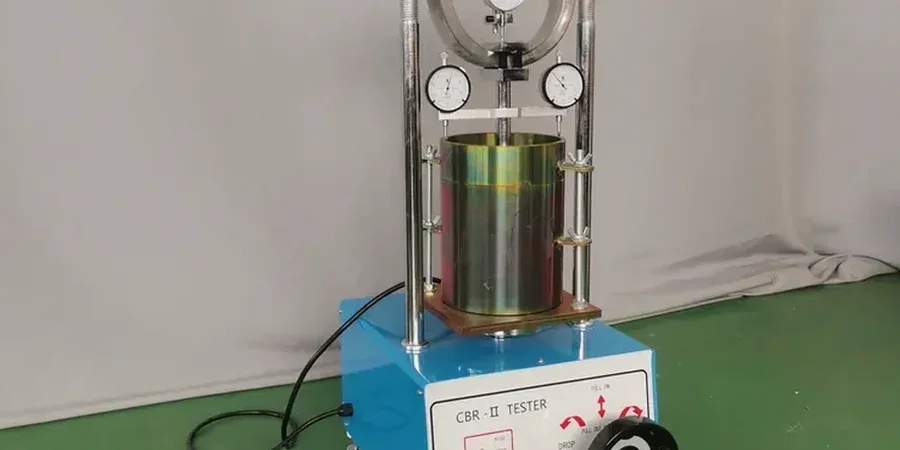

The compact loading frame sits steady on a concrete floor, its loading piston aligned with a prepared soil sample. In Luton, where the geology shifts from the chalky formations near the Dunstable Downs to the clay-with-flints capping the higher ground, a standardised approach to strength measurement matters. The laboratory CBR test subjects a compacted specimen to a controlled penetration rate, recording the force needed to push a plunger deeper. It is a direct index of how well a subgrade handles traffic loads without deforming. For engineers around the M1 corridor and the town’s expanding logistics hubs, this value dictates pavement thickness. Our team processes samples cut from test pits the day they arrive, avoiding delays that could stall earthworks in the variable Bedfordshire climate.

A soaked CBR of 2% or less in Luton’s chalky clays can double the required pavement thickness compared to a 5% value.

Our service areas

Process and scope

The chalky glacial drift across south Bedfordshire often looks firm on a shovel but softens fast once saturated. A soaked CBR value often drops below 2%, which demands thorough assessment. The test runs at 1.27 mm per minute, with readings taken at 2.5 mm and 5.0 mm penetration. We compare these against the standard curve for a crushed stone reference material. If the corrected value falls short, the pavement design must be adjusted. For Luton’s industrial estates, this often means specifying a capping layer. The plate load test then verifies that compacted layer on site, closing the loop between laboratory prediction and field performance. We also correlate results with grain size distribution to confirm the material classification when the fines content is borderline.

Laboratory CBR Testing in Luton: Reliable Strength for Every Layer — Technical reference — Luton

Local considerations

Eurocode 7 (BS EN 1997-2:2007) requires that ground investigation be planned to identify weak layers. In Luton, the interface between made ground and natural chalk presents a specific challenge. Old brick pits and backfilled quarries dot the town’s periphery. If a laboratory CBR test samples only the competent upper fill but misses a soft pocket beneath, the pavement section will be underdesigned. Rutting appears within the first winter. The soaked test is critical here. Luton’s average annual rainfall of around 700 mm, combined with poor drainage in the clay-with-flints, means the subgrade will likely reach near-saturated conditions in service. A test run at optimum moisture content without soaking gives a falsely optimistic strength.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.com

Relevant standards

BS 1377-4:1990 — Soaked CBR laboratory test, Eurocode 7 — BS EN 1997-2:2007, Manual of Contract Documents for Highway Works (MCHW), Series 600

Technical data

Parameter	Typical value
Test standard	BS 1377-4:1990
Plunger diameter	49.6 mm
Penetration rate	1.27 mm/min
Key penetration readings	2.5 mm and 5.0 mm
Specimen compaction	Standard or Modified Proctor
Soaking period	96 hours
Surcharge weight	Equivalent to pavement mass

Frequently asked questions

What is the cost of a laboratory CBR test in Luton?

A single-point soaked CBR test in our Luton laboratory typically ranges from £90 to £150, depending on the number of points and the required compaction effort. A three-point test to establish the full strength-moisture relationship is at the upper end of that range. We provide a firm quote once we know the number of samples and the material type.

How long does the laboratory CBR test take to complete?

The soaking phase alone takes 96 hours as specified in BS 1377-4. With sample preparation, compaction, and penetration testing, a full report is typically ready within five working days. We can expedite the dry portion of the test if only the unsoaked value is required for initial quality control.

Why is the soaked CBR value lower than the unsoaked one?

Soaking simulates the worst-case moisture condition the subgrade will experience over its service life. Water films between clay particles reduce effective stress and cohesion. In Luton's clay-with-flints, a soaked value can be less than half the unsoaked strength. Designing with the soaked value prevents premature rutting after wet winters.

How many sample points do I need for a pavement design in Luton?

The MCHW Series 600 and Eurocode 7 suggest a minimum of one test per distinct material type per 200 linear metres of road alignment. For a variable site near the Chilterns fringe, we recommend a three-point CBR test on each different stratum to capture the strength-moisture curve accurately.
