Retaining Wall Design in Luton – Ground Conditions That Matter

Rigorous testing. Clear reporting.

LEARN MORE

In Luton, we often see developers surprised by how quickly ground conditions change between the chalk valleys and the clay-with-flints plateaus. A retaining wall that works near the source of the River Lea won't necessarily suit a site up on the Barton Hills without careful geotechnical input. Our team takes a project from ground investigation through to detailed retaining wall design, working with the local geology rather than against it. We routinely pair the design phase with CPT testing to profile soft zones in the Lower Chalk, and when dealing with the glacial deposits that cap the higher ground we also assess slope stability because many of Luton's steeper gardens and cut sites are prone to shallow creep after heavy rainfall. The aim is always a structure that holds, drains, and doesn't surprise the builder during excavation.

Luton's chalk can stand near-vertical in a temporary cut but weathers to putty within a season if left exposed behind a poorly drained retaining wall.

Our service areas

Process and scope

With a population now exceeding 225,000 and the Luton DART rapid transit system pushing new infrastructure into constrained urban plots, retaining structures are getting taller and closer to neighbouring properties. A typical design in the borough has to handle a water table that sits barely two metres down in the valley gravels, plus the shrink-swell potential of the Clay-with-Flints Formation that mantles the chalk scarp. We size stems, toes, and heel lengths using limit state analysis to BS EN 1997-1:2004, factoring in live loads from traffic on the A505 and the M1 when the wall forms part of a highway boundary. For sites where space is tight, we also verify the ground with in-situ permeability tests because a wall that retains water as well as soil becomes a completely different design problem—one that can double the required reinforcement if drainage is misunderstood.

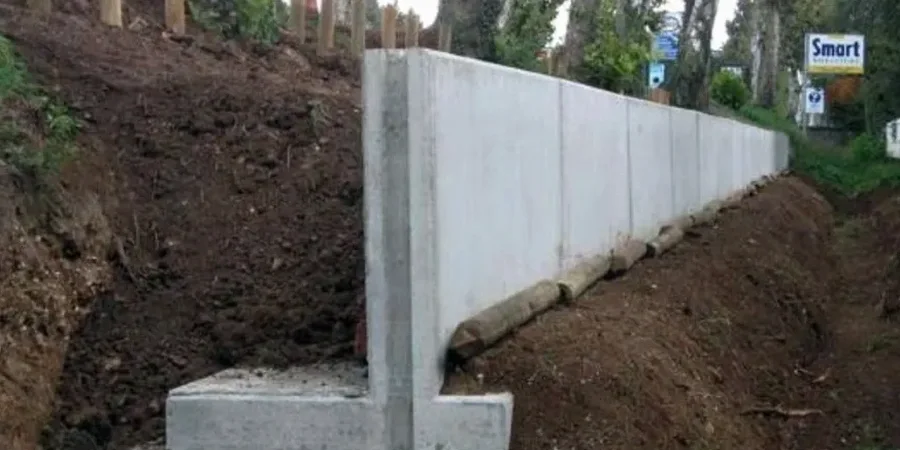

Retaining Wall Design in Luton – Ground Conditions That Matter
Technical reference — Luton

Local considerations

Eurocode 7 requires that we consider all limit states, but in Luton the one that catches inexperienced designers out is loss of global stability at the wall toe where chalk has been softened by perched water. BS 5930:2015 gives the framework for logging chalk structure, and we have seen sites where Grade VI chalk behaves like a silty clay, slumping under its own weight when the excavation is left open too long. Another risk is differential settlement where a wall spans the boundary between in-situ chalk and backfilled quarry workings—Luton's industrial past has left plenty of those. We insist on a ground investigation that goes deep enough to catch the transition, and we design with granular drainage blankets and weep holes sized for Bedfordshire's 1-in-100-year rainfall intensity, because a wall that holds the soil but traps the water is a wall that will eventually move.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.com

Relevant standards

BS EN 1997-1:2004 (Eurocode 7 – Geotechnical design), BS 5930:2015 (Code of practice for ground investigations), BS 8002:2015 (Code of practice for earth retaining structures), BS EN 1992-1-1:2004 (Design of concrete structures)

Technical data

ParameterTypical value
Design standardEurocode 7 – BS EN 1997-1:2004
Partial factorsDA1 Combination 1 & 2 (UK National Annex)
Backfill type for Luton valleysRiver gravels, Head deposits, made ground
Backfill type for Luton uplandsClay-with-Flints, residual chalk breccia
Water table considerationTypically 1.8–2.5 m bgl in valley floor sites
Seismic hazardVery low – not normally governing for Luton
Minimum design life50 years (Category 2 structures)
Bearing verificationAgainst in-situ chalk Grade III–VI per BS 5930

Frequently asked questions

What does retaining wall design cost for a residential project in Luton?

For a typical residential retaining wall in Luton—say 1.5 to 2.5 metres of retained height with a single leaf reinforced concrete section—our design fee ranges from £900 to £3,060, depending on whether ground investigation data is already available and how complex the loading conditions are. Walls over 3 metres or those supporting highway loads fall at the upper end because they require more detailed analysis and a full set of structural calculations.

Do I need planning permission for a retaining wall in Luton?

In most cases, a retaining wall under 2 metres high that is not adjacent to a highway does not require planning permission, but it must still comply with Building Regulations and the Party Wall Act if it is close to a boundary. We can advise on the specific triggers for your site and prepare the technical documentation required by Luton Borough Council's building control team.

How do you design for the chalk ground conditions in Luton?

We log the chalk structure according to BS 5930, grading it from Grade I (unweathered) to Grade VI (fully weathered, soil-like), because the design parameters change significantly. For Grade III–IV chalk we can use higher bearing pressures and steeper cut slopes, whereas Grade V–VI chalk is treated more like a stiff clay, with lower friction angles and a requirement for careful drainage detailing.

Can you design a retaining wall on a sloping site in Luton?

Yes, many of our Luton projects are on sloping ground, particularly in the High Town and Barton Hills areas. We incorporate the slope into the global stability model and often increase the heel length or add a shear key at the toe. The key is capturing the groundwater regime correctly, because sloping sites tend to accumulate subsurface flow that can saturate the backfill if not intercepted.

What information do you need to start the design?

We need a ground investigation report with borehole logs or trial pit records that extend at least 1.5 times the retained height below formation level, a topographical survey showing levels and boundaries, and details of any surcharge loads such as adjacent buildings, roads, or parked vehicles. If you do not have a ground investigation yet, we can scope and manage one for your Luton site.
