SPT Testing in Luton: Reliable Ground Data for Your Project

Rigorous testing. Clear reporting.

LEARN MORE

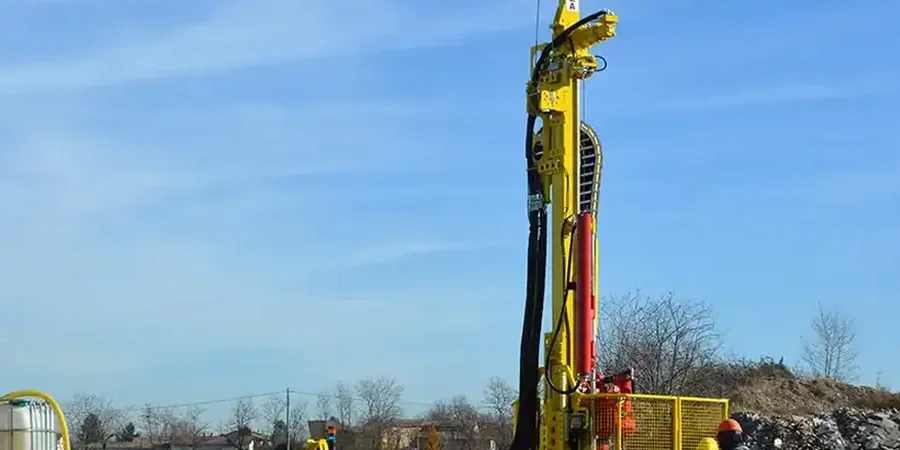

The rig arrives with a standard split-spoon sampler and a 63.5 kg hammer dropping from 760 mm. That is the core of every SPT we run in Luton. The chalk under south Bedfordshire does not read like London clay, and guessing the N-value is the fastest way to blow a budget. Our crew works from the town centre to the M1 corridor, drilling through the Upper Chalk and overlying glacial deposits that define the ground profile here. We log every 75 mm of penetration and deliver the data you need to size footings correctly on variable ground.

In Luton's chalk terrain, N-values below 15 at footing level demand a rethink before concrete goes in.

Our service areas

Process and scope

A common mistake we see in Luton is assuming a uniform chalk layer and skipping a deep enough borehole. The Sub-Alluvial Terrace gravels near the River Lea can mask soft zones underneath, and hitting refusal too early misleads the bearing capacity calculation. We see it often: a contractor places a pad footing only to find weathered chalk with N-values below 15 at 2 metres depth. Our procedure follows BS 5930:2015 and BS EN 1997-2, recording depth, blow counts, and sample recovery without shortcuts. The rig operator checks the hammer energy ratio regularly because a worn rope can inflate N-values and undersize your reinforcement. We combine SPT with sample collection for lab index testing when the stratigraphy changes mid-borehole.
SPT Testing in Luton: Reliable Ground Data for Your Project
Technical reference — Luton

Local considerations

Luton sits on chalk that weathers unpredictably. A dry borehole in August can hit soft putty chalk at 4 metres, while the same postcode in February reveals a perched water table in the granular Head deposits above the chalk. Ignoring seasonal saturation leads to N-values that look better than they are. We have logged sites near the airport where frost-weathered chalk gave N-values of 8–12 directly above fresh rock with N>50. If the foundation design uses an averaged N-value across that boundary, differential settlement becomes a real risk. We time the investigation to capture the worst-case groundwater condition because the Chilterns' chalk does not drain uniformly.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.com

Video resource

Relevant standards

BS 5930:2015 (Code of practice for ground investigations), BS EN 1997-2:2007 (Eurocode 7 – Ground investigation and testing), BS EN ISO 22475-1 (Sampling and groundwater measurement)

Technical data

ParameterTypical value
Hammer typeStandard 63.5 kg, free-fall trip release
Drop height760 mm (± 10 mm)
SamplerStandard split-spoon, 50 mm OD, 35 mm ID
Recording intervalBlow counts per 75 mm, total per 300 mm
Borehole diameter100–150 mm, flush-jointed casing where required
Depth capacity (Luton)Up to 25 m on chalk; deeper with rotary follow-on
Reporting standardBS 5930:2015 + BS EN 1997-2
Data deliveredBorehole log, SPT N-values, sample descriptions, water strike

Frequently asked questions

What depth do you typically drill for an SPT in Luton?

Most residential and light commercial projects in Luton require 10 to 15 metres. We aim to penetrate at least 3 metres into competent chalk or until N-values exceed 50 for three consecutive 75 mm increments. On larger industrial schemes near the airport, we go to 25 metres with rotary follow-on if the chalk is blocky.

How much does an SPT borehole cost in Luton?

A standard SPT borehole with log and report typically runs between £430 and £680, depending on depth, access conditions, and the number of SPT intervals requested. We provide a fixed quote after reviewing the site location and any known ground constraints.

How long does it take to get the SPT log after drilling?

We deliver draft borehole logs within 3 working days of completing fieldwork. If you need the data faster for a concrete pour, we can send the field sheets the same day and follow up with the formatted report.

Do you need traffic management for SPT work on Luton roads?

On classified roads or in the town centre, yes. Our team handles the TM application with Luton Borough Council. On residential side streets with low traffic, we can often work with simple cones and signage, but we always confirm during the site walkover.

Location and service area

We serve projects in Luton and surrounding areas.
